Elevator Traction Machine ST -4 (5 HP)

Get a Price/Quote

Product Details:

Type ST -4 (5 HP), Geared Traction Machine
Load Capacity 272 kg
Door Opening Size 700 mm
Usage Passenger Elevator, Passenger Elevator
Noise Level 65 dB
Pit Depth 1500 mm
Car Dimension 1100 mm x 900 mm
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Elevator Traction Machine ST -4 (5 HP) Product Specifications

Mechanism Type Electric Traction, Electromechanical
Hoist Way Size 1600 mm x 1500 mm
Inclination 0 (Vertical)
Speed 1.0 m/s
Voltage 415 V
Overhead Height 4000 mm
Working Temperature -10C to +40C
Drive Type Gearless Traction, Traction Drive
Capacity 4 Persons
Machine Room Size 2200 mm x 2000 mm
Door Opening Size 700 mm
Material Alloy Steel, Cast Iron (Body)
Usage Passenger Elevator, Passenger Elevator
Max. Lifting Height Up to 45 m
Type ST -4 (5 HP), Geared Traction Machine
Load Capacity 272 kg
Max. Lifting Weight 320 kg
Control Device Microcomputer Control, VVVF Drive
Power Supply Three Phase, 50 Hz
Noise Level 65 dB
Car Dimension 1100 mm x 900 mm
Pit Depth 1500 mm
Safety Device Overload Protection, Safety Brake, Mechanical and Electrical Interlocks

Lifting Technology Steel Wire Rope Traction
Brake Voltage DC 220 V
Frame Structure Heavy Duty Reinforced
Duty Cycle S4 Continuous
Motor Power 5 HP
Number of Ropes 4
Mounting Type Overhead or Side Mounted
Application Residential & Commercial Lifts
Color Blue & Black
Brake Type Electromagnetic
Lubrication System Oil Bath

Product Description

Experience excellence with the Featured Elevator Traction Machine ST-4 (5 HP), an elite solution designed for residential and commercial lifts. Engineered with a 5 HP motor and four sturdy ropes, this gilt-edged machine offers inestimable reliability, exceptional safety, and a heavy-duty reinforced frame for long-lasting performance. Equipped with a sensational oil bath lubrication system, electromagnetic braking, VVVF drive, and advanced microcomputer control, it ensures optimal efficiency at the best price. Trusted for its superior load capacity, low noise operation, and robust safety features-this machine stands as a true benchmark in vertical mobility.

Comprehensive Features & Versatile Applications

The ST-4 (5 HP) Elevator Traction Machine boasts premium features such as a heavy-duty reinforced frame, gearless traction drive, and electromagnetic braking, ensuring unrivaled performance. Its flexible design supports both overhead and side mounting, making it suitable for various residential and commercial buildings. With remarkable load capacity, noise reduction technology, and robust safety interlocks, it adapts seamlessly to hotels, apartments, commercial complexes, and other vertical transport environments, fulfilling diverse operational demands.

Premium Payment Terms, Sample Policy & Packaging Details

We offer flexible payment conditions tailored to client requirements, ensuring a seamless purchasing process. Premium sample policies are available for product evaluation by discerning customers. Each Gilt-edged ST-4 machine is meticulously packed and dispatched to guarantee safe delivery and minimal transit risks. With a focus on superior packing materials and timely dispatch, we uphold our commitment to exceptional customer satisfaction at every stage, including reliable installation and prompt after-sales service.

FAQ's of Elevator Traction Machine ST -4 (5 HP):

Q: How does the Elevator Traction Machine ST-4 (5 HP) ensure safety during operation?

A: The ST-4 machine features advanced safety mechanisms, including overload protection, mechanical and electrical interlocks, and a high-performance safety brake system to ensure secure and reliable operation in all conditions.

Q: What applications is the ST-4 (5 HP) Traction Machine suitable for?

A: The ST-4 is ideal for both residential and commercial lifts, making it suitable for apartments, hotels, office complexes, and similar establishments requiring dependable vertical transport.

Q: Where can the Elevator Traction Machine ST-4 (5 HP) be installed?

A: It can be installed in both overhead and side-mounted configurations, offering flexibility for various hoistway and machine room layouts within residential or commercial properties.

Q: What are the benefits of the oil bath lubrication system in the ST-4 machine?

A: The oil bath lubrication system significantly reduces friction and wear, enhancing machine longevity, minimizing maintenance, and ensuring continuous smooth operation.

Q: How does the payment and delivery process work for this product?

A: Clients enjoy tailored payment terms and premium packaging to ensure the product is packed and dispatched safely. Delivery is prompt, with attentive customer service from order placement through installation.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Elevator Machines' category

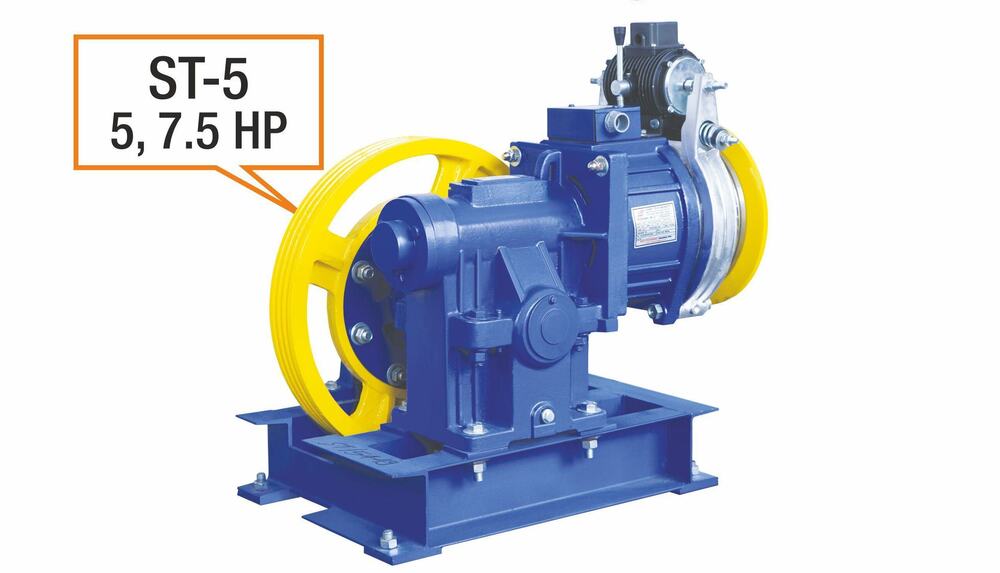

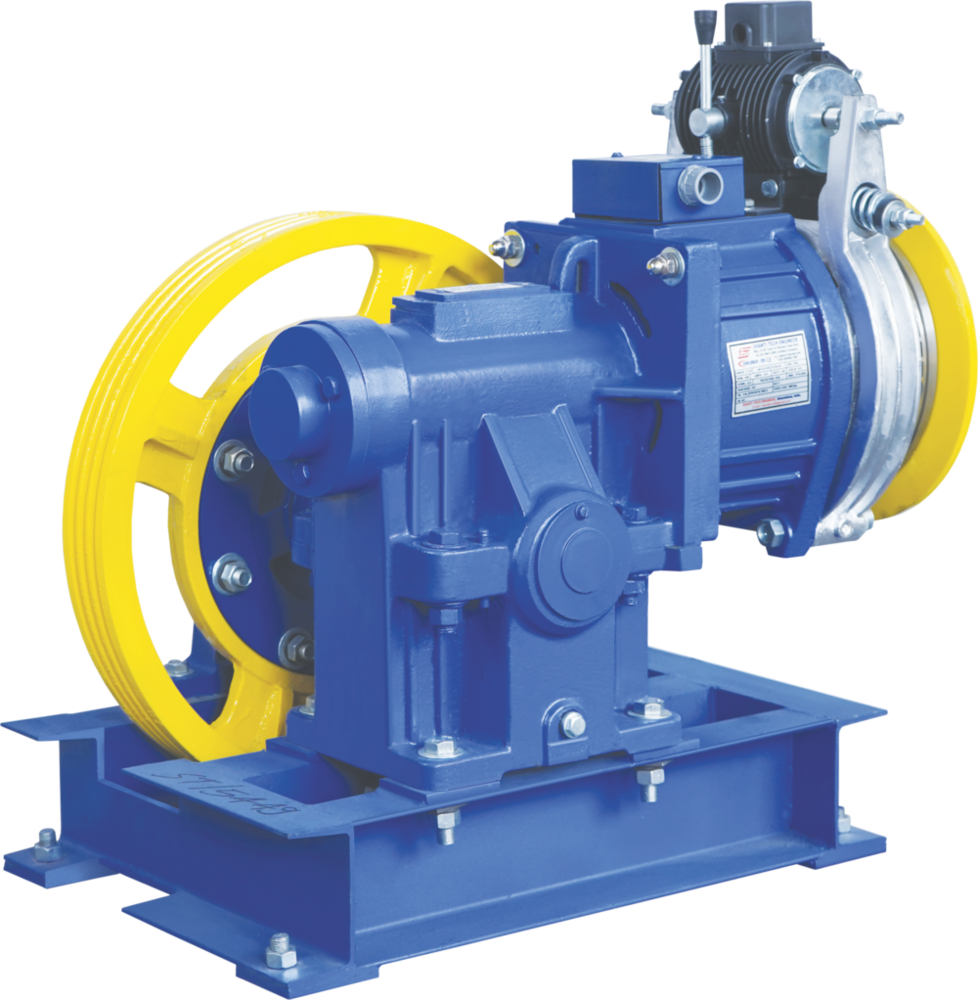

Elevator Traction Machine ST -5 (5,7.5 HP) Safety Device : Other, Overload Protection, Other, Electromagnetic Brake Machine Room Size : 2000 x 1800 mm Drive Type : Geared Traction, Geared Traction Capacity : 5, 7.5 HP Noise Level : <= 60 dB Working Temperature : 10C to +40C Power Supply : 3 Phase, 50 Hz Car Dimension : 1100 x 1200 mm Pit Depth : 1600 mm Max. Lifting Weight : 1000 kg Voltage : 380 V Overhead Height : 4300 mm Load Capacity : Up to 1000 kg Max. Lifting Height : 50 meters Speed : 1.0 m/s Usage : Other, Passenger/Commercial Elevators, Other, Elevator / Lift Hoist Way Size : 1600 x 1500 mm Door Opening Size : 800 mm
